Taper lock bushings
HDX taper-lock bushings are made from high grade Class 30 gray cast iron, precision-machined to tight tolerances. They provide easy mounting of pulleys, sprockets, and other rotating components, ensuring excellent durability and efficient torque transmission.
➡️Stock bore Taper lock bushings pdf
Bore sizes are in increments of 0.0625" (Imperial and Metric bores available)

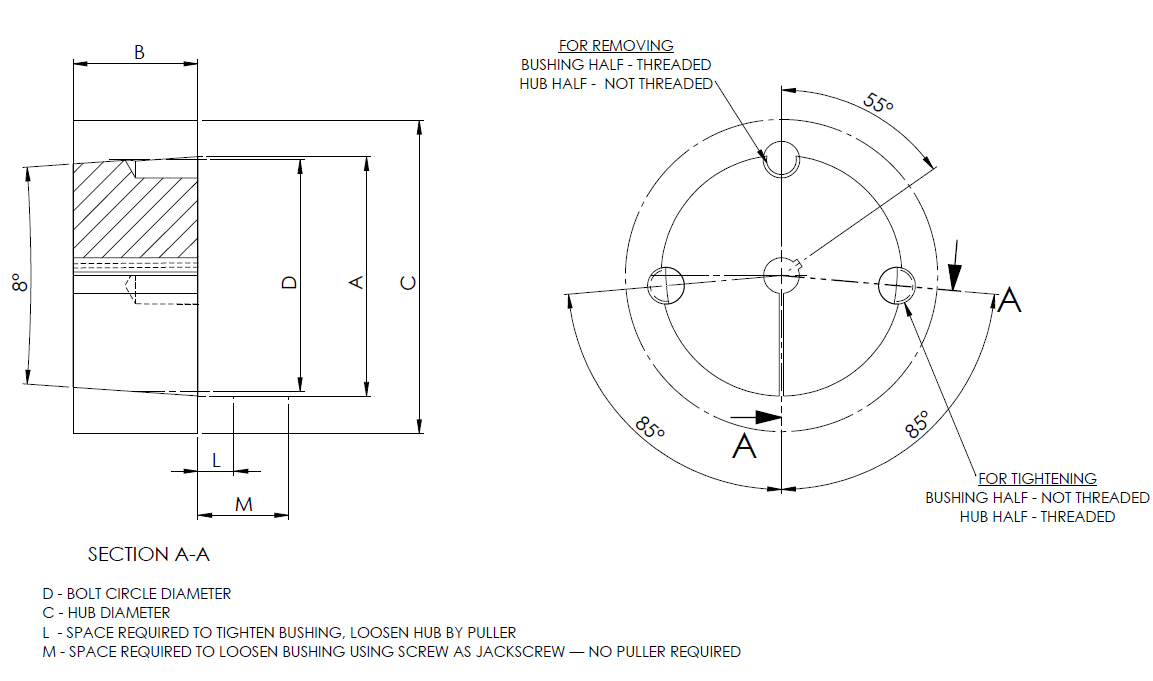

Taper Bushings Dimensions
| Size | Bore | A | B | L | M | Hub ø | Appx. Weight |
|---|
| 1008 | 1/2" - 1" | 1.380" | 0.87 | .620" | .750" | 1.87" | .20 lbs |
| 1108 | 1/2" -1 1/8" | 1.510" | 0.87 | .620" | .750" | 2.00" | .20 lbs |
| 1210 | 1/2" - 1 1/4" | 1.870" | 1 | .810" | 1.060" | 2.37" | .50 lbs |
| 1215 | 1/2" - 1 1/4" | 1.870" | 1.5 | .810" | 1.060" | 2.37" | .60 lbs |
| 1310 | 1/2" -1 3/8" | 2.000" | 1 | .810" | 1.060" | 2.62" | .60 lbs |
| 1610 | 1/2" -1 5/8" | 2.250" | 1 | .810" | 1.060" | 2.87" | .70 lbs |
| 1615 | 1/2" -1 5/8" | 2.250" | 1.5 | .810" | 1.060" | 2.87" | .80 lbs |
| 2012 | 1/2" - 2" | 2.750" | 1.25 | .930" | 1.370" | 3.50" | 1.20 lbs |
| 2517 | 1/2" - 2.5" | 3.370" | 1.75 | 1.000" | 1.620" | 4.25" | 2.40 lbs |
| 2525 | 3/4" - 2.5" | 3.370" | 2.5 | 1.000" | 1.620" | 4.25" | 3.30 lbs |
| 3020 | 7/8" - 3" | 4.250" | 2 | 1.180" | 2.060" | 5.25" | 4.50 lbs |
| 3030 | 15/16" - 3" | 4.250" | 3 | 1.180" | 2.060" | 5.25" | 6.00 lbs |
| 3535 | 1 3/16" - 3.5" | 5.000" | 3.5 | 2.000" | 2.620" | 6.50" | 9.00 lbs |
| 4040 | 1 7/16" - 4" | 5.750" | 4 | 1.620" | 4.370" | 7.75" | 16.00 lbs |
| 4545 | 1 15/16"-4.5" | 6.370" | 4.5 | 1.620" | 4.370" | 8.75" | 20.00 lbs |
| 5050 | 2 7/16" - 5" | 7.000" | 5 | 1.620" | 4.370" | 9.50" | 27.00 lbs |
| 6050 | 4 7/16" - 6" | 9.250" | 5 | 1.620" | 4.370" | 13.50" | 55.00 lbs |
| 7060 | 4 15/16" - 7" | 10.250" | 6 | 1.620" | 4.370" | 14.75" | 75.00 lbs |
| 8065 | 5 7/16" - 8" | 11.250" | 6.5 | 1.620" | 4.370" | 15.50" | 90.00 lbs |
